How to create measurements table

  • Updated

1. What is the measurement section?

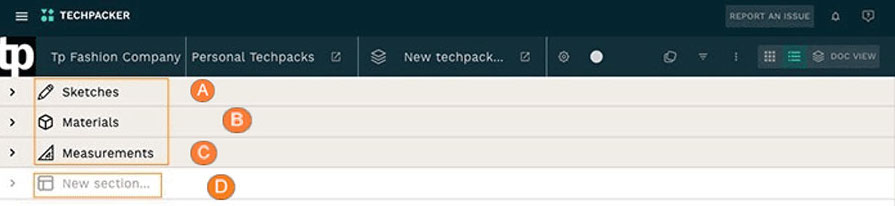

All techpacks on Techpacker are divided between three main default sections i.e. mceclip4.png sketches,materials and Alphabet-c.png measurements,.. and Alphabet-d.png the custom sections.

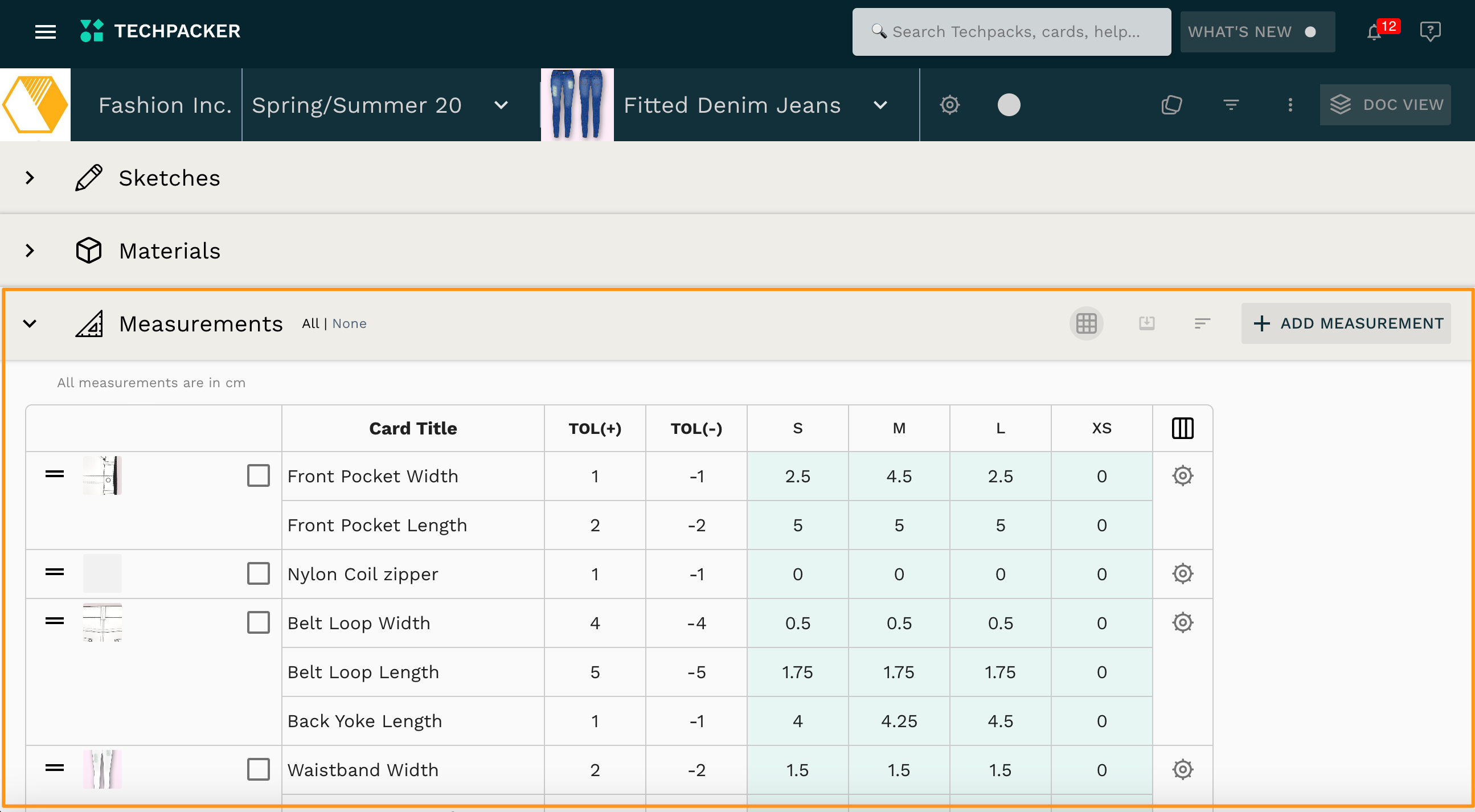

Measurement section is one of the three main default sections where you will add all points of measurements (POM's) of your design like chest, waist, underarm length, HPS length etc along with their associated specs for each size in the form of measurement table.




Each point of measurement has its own separate card in this section.

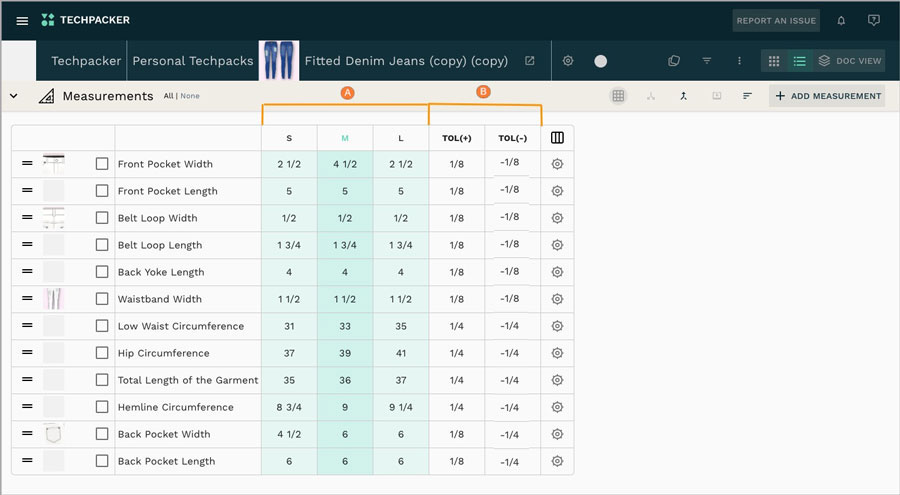

A measurement table has all the  point of measurements (POM)s and  tolerance.





TOL, short for Tolerance that you provide to your manufacturer as an understanding that you'll except the measurements if it's within the tolerance. For example, if the waist measurement that you provided to your manufacturer is 33 1/2 inches and the tolerance as (+/-) 1/2". When you receive your first sample, if the waist is 34" or 33", it's acceptable however if it's 34 1/4", that's considered out of tolerance.




2. How to create a measurement table

There are two ways to add cards in the measurement section:


2a. Adding individual cards

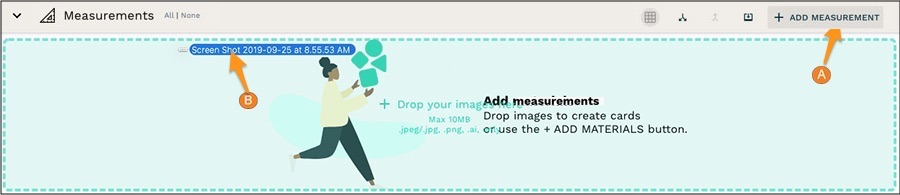

Step 1: There are two ways to add individual measurement cards -

  • mceclip4.png By clicking on + add measurement
  •  By dragging in your measurement card image




Each card hosts a set of information. You can add those information related to a particular detail of your POM sure the columns having sizes should be made as size columns.


Click here to learn more on how to add cards

The sizes added in techpack settings, they will come along with the default columns of the measurement cards.


Step 2

In order to add information to your measurement table, you can simply click on the cell start typing in the cells.

Enter all the point of measurements and tolerances in the cells of the measurement cards created and your measurement table is ready.




You can also enter information in the cells by copy/paste from excel.


2b. By import csv


You can quickly create a measurement table by directly importing an Excel (CSV format only) with POM's and their tolerances.

Before importing a csv file, make sure your measurement section is completely blank


Step 1

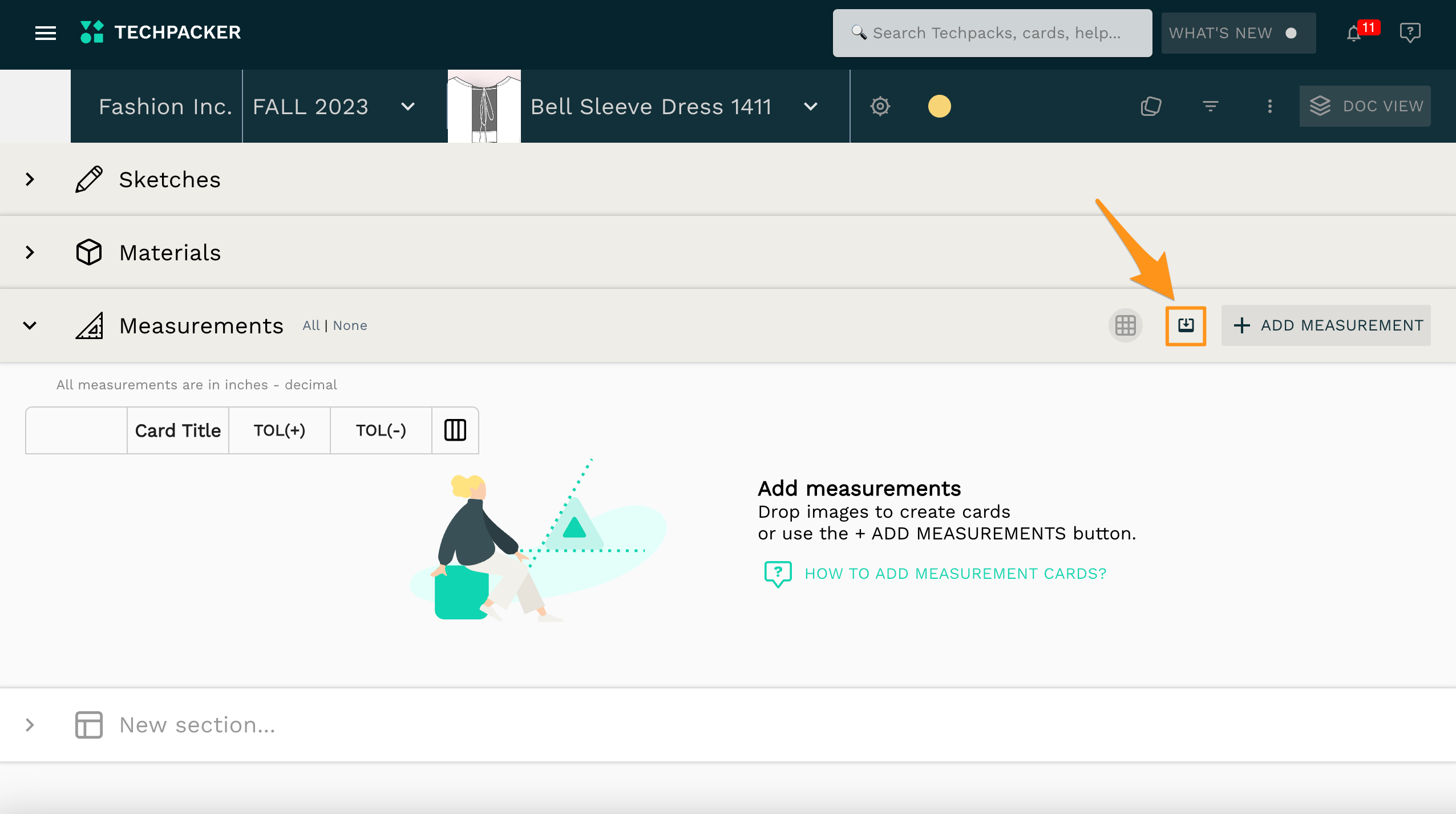

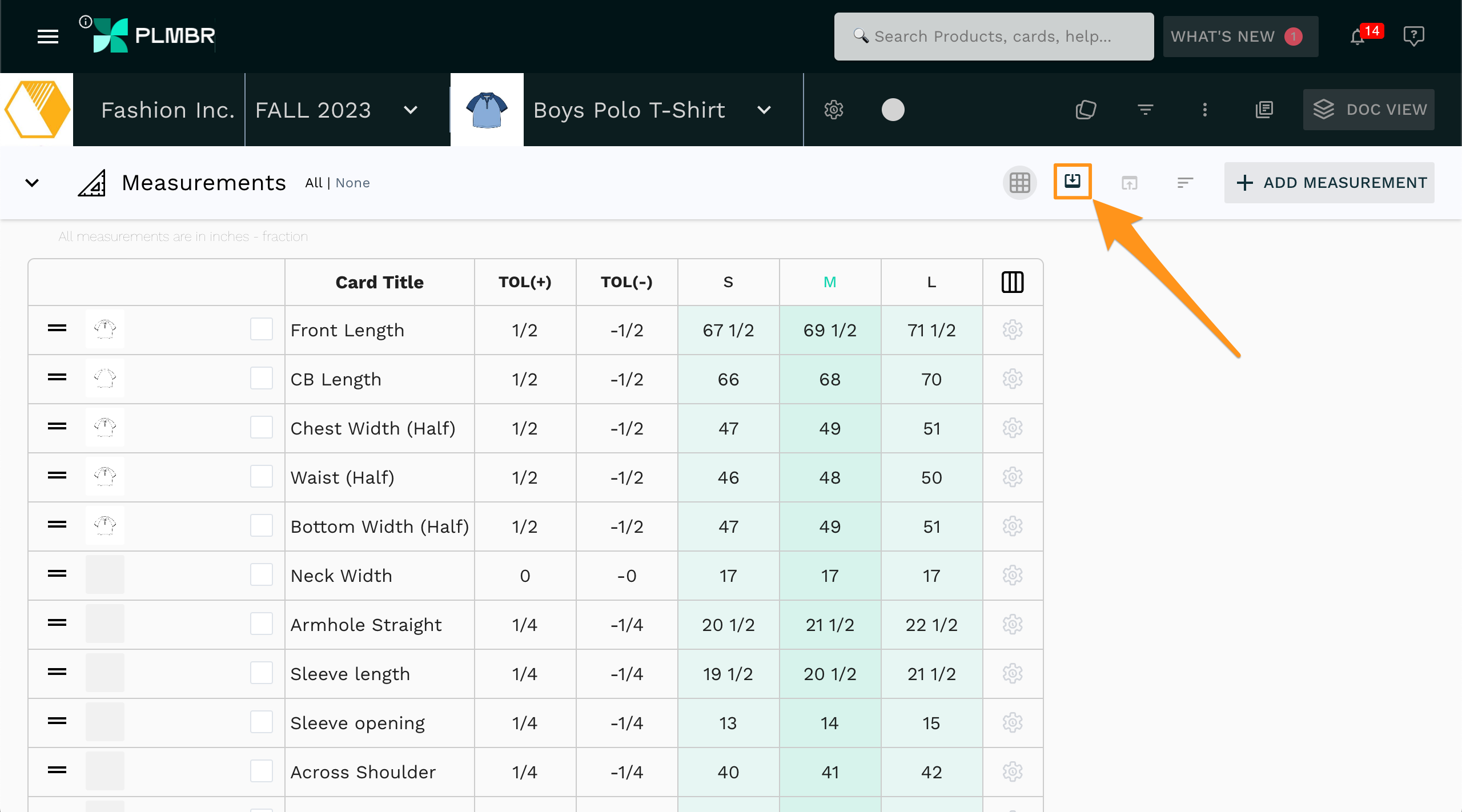

Click on the open_in_browser.png import measurement from csv icon located on top of the measurement section.


import csv measurement .png


Step 2

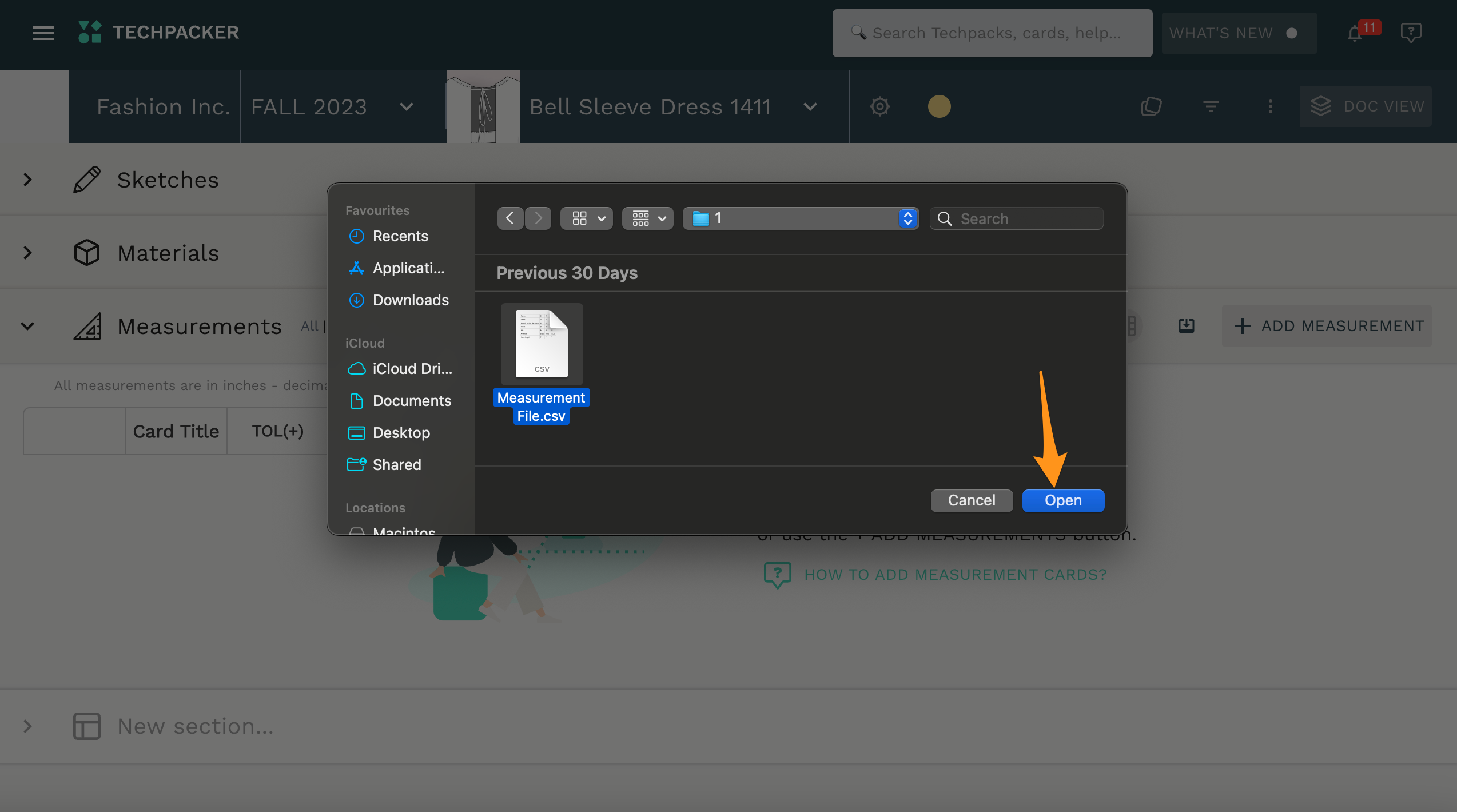

Browse and select the .csv file you wish to upload and click open


You can use this excel template to update your measurement table data before importing it on Techpacker.


select measurement.png

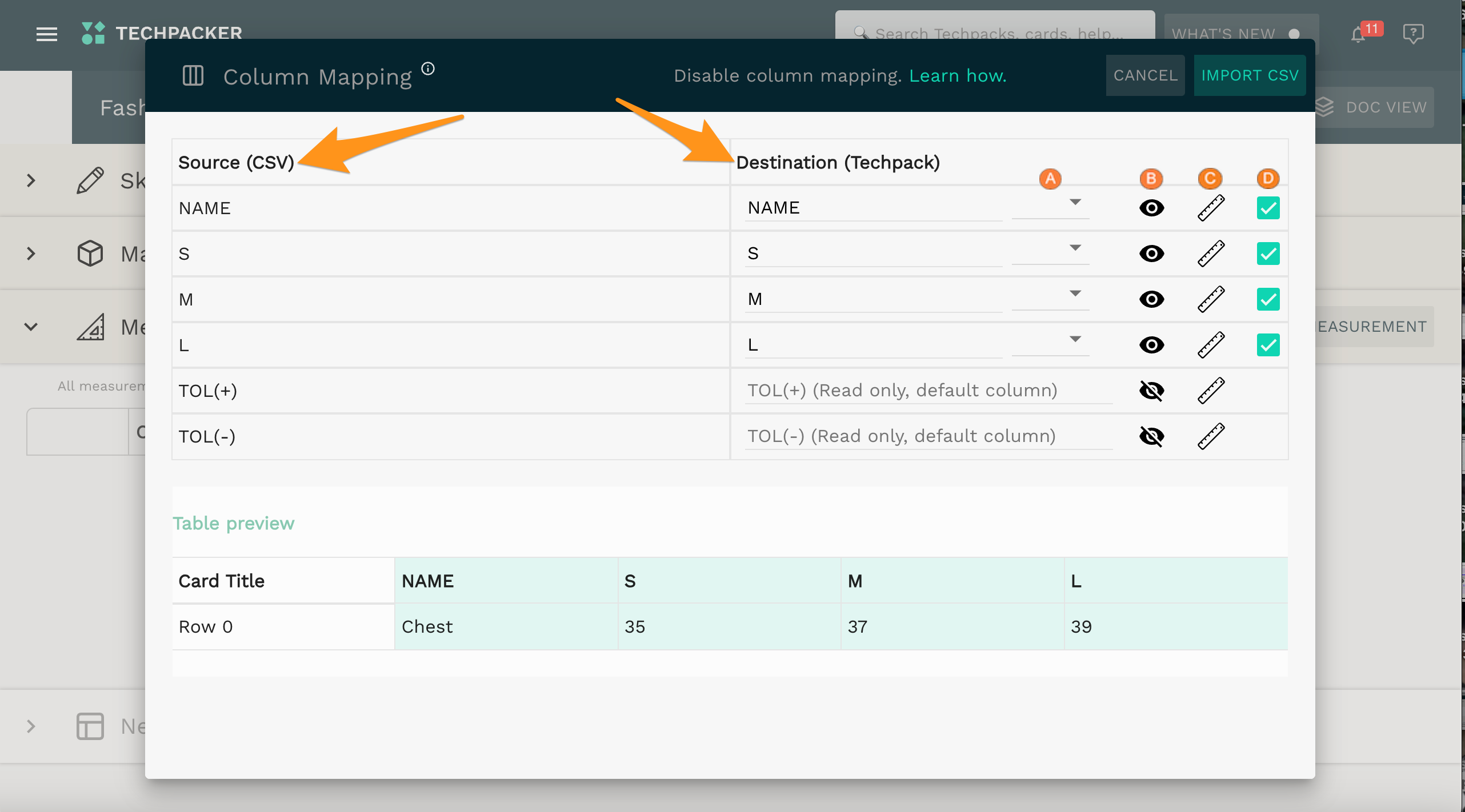

Step 3: This screen will pop-up where you will select the information from your CSV file you wish to include.


import csv.png

  • Under Source you will see the names of the columns from your CSV file
  • Under Destination you will select and match the relevant columns where your table data should go.
  • For e.g. if in your .csv a column is called NAME, then in the destination area you should also match it with  Alphabet-a.png NAME
  • If you wish to hide a certain column in your measurement section, you can click on this images.png icon to hide a column as shown above Alphabet-b.png. Your data will be imported, but just won't be visible. You can always unhide that column later through the column manager
  • By default, all columns are imported as size columns. Use this Alphabet-c__1_.png measure.png icon to switch them to non-size columns wherever necessary.
  • Alphabet-d.png Check Group.png the columns you wish to import or exclude from your measurement table.



csv mapping measurement.png

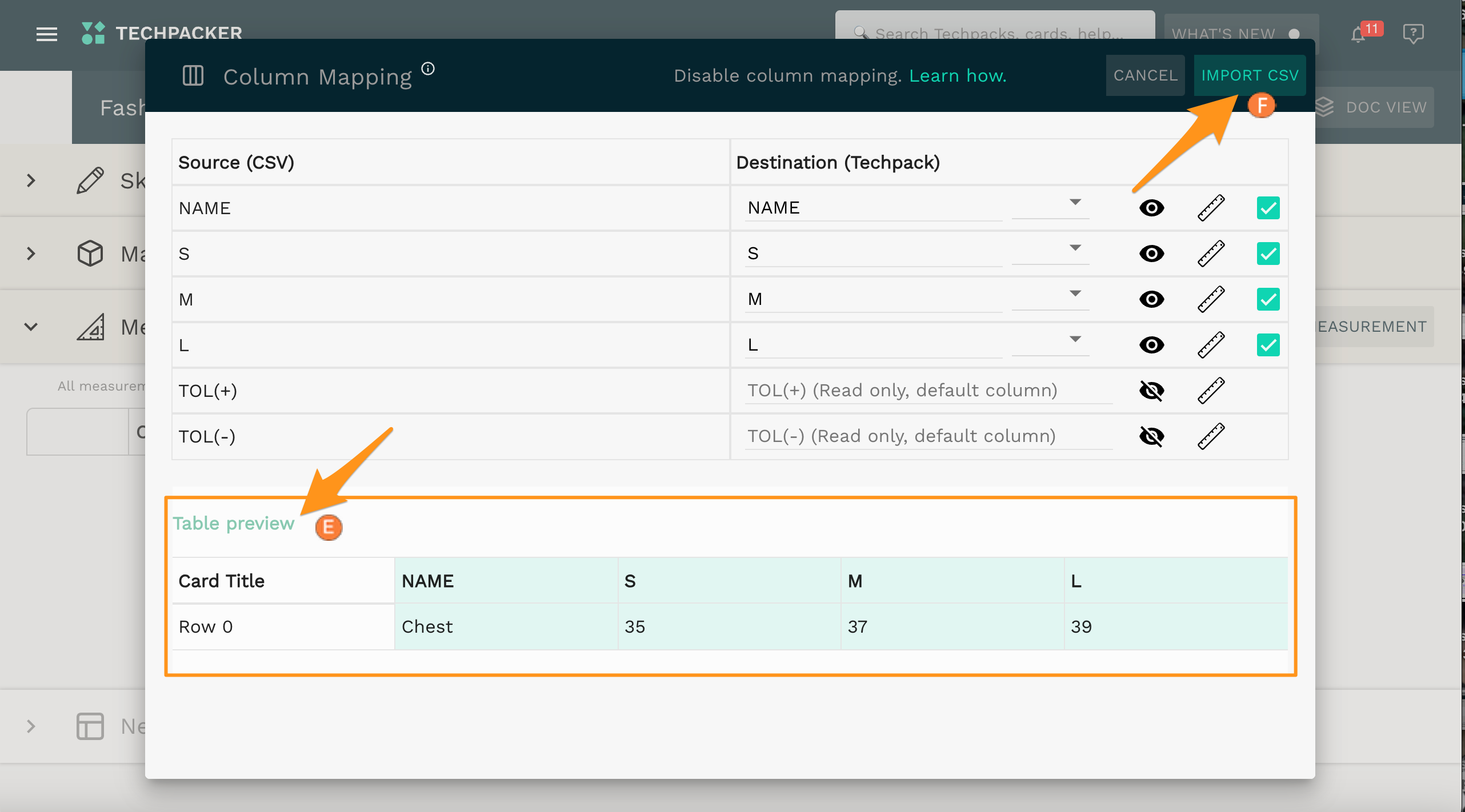

  • Alphabet-e.png You can preview the columns and the order of the final table after you have made all the changes.
  • F.png At last, click on this "Import CSV" button to import the table with the final changes made by you.



3. How to select a sample-size

There are two ways to select a sample size in the measurement section:

3a. From techpack settings

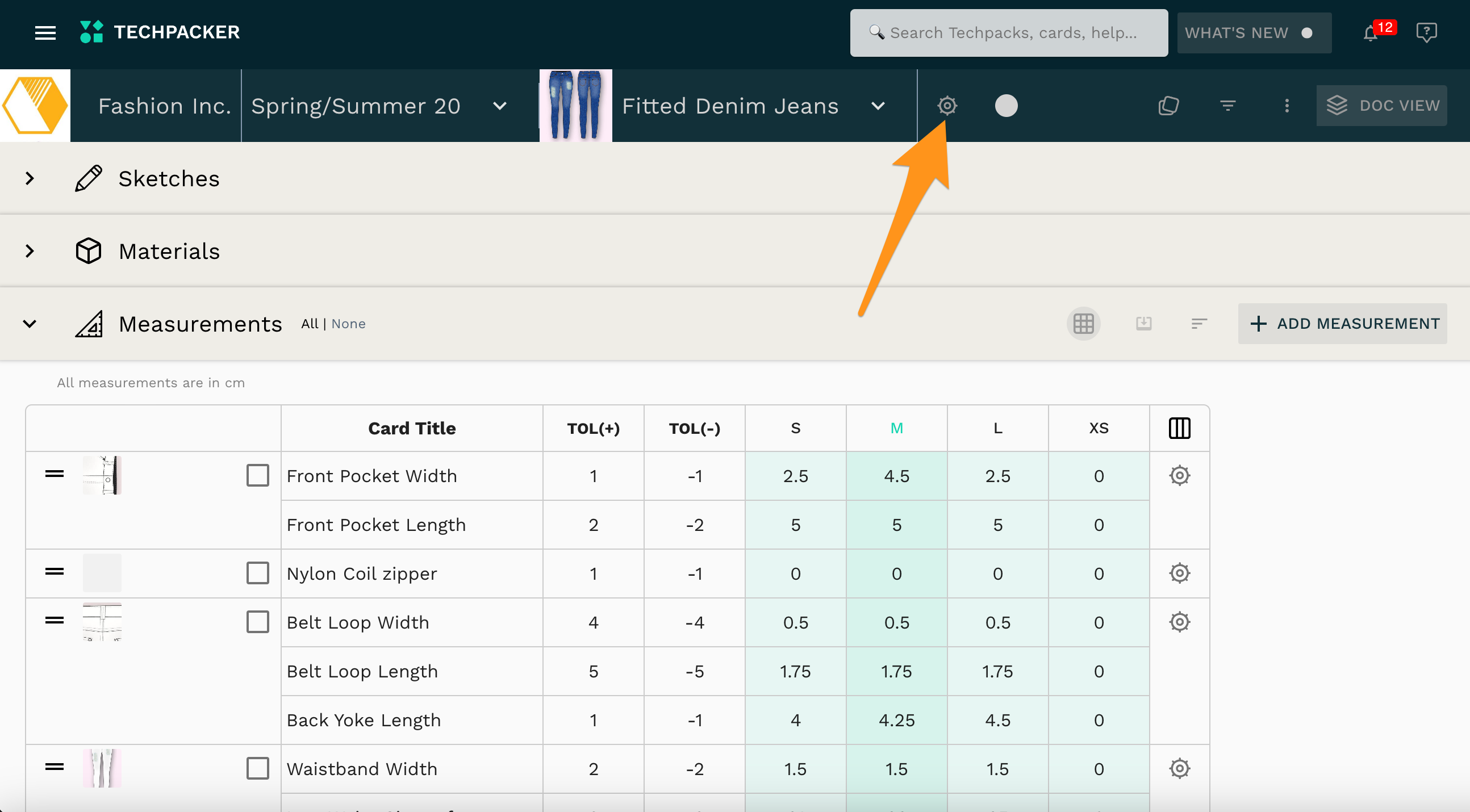

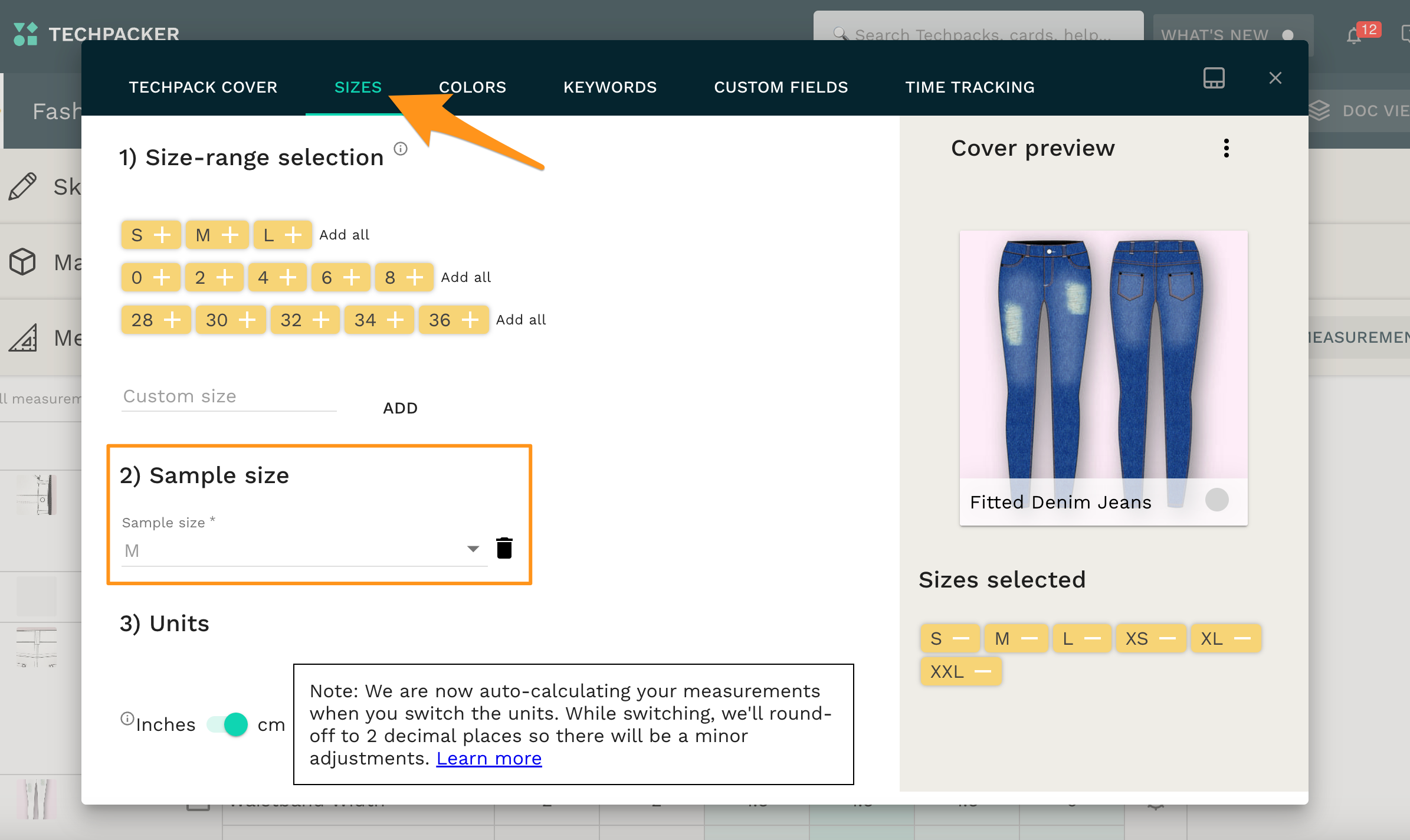

Step 1: Click on this gear-icon gear icon to open the techpack settings


Step 2: Under the Size section, you can select your desired sample size.


3b. From the measurement table

Step 1: Inside a techpack go to your measurements section


Step 2: Click on the size column you want to select as a sample size.

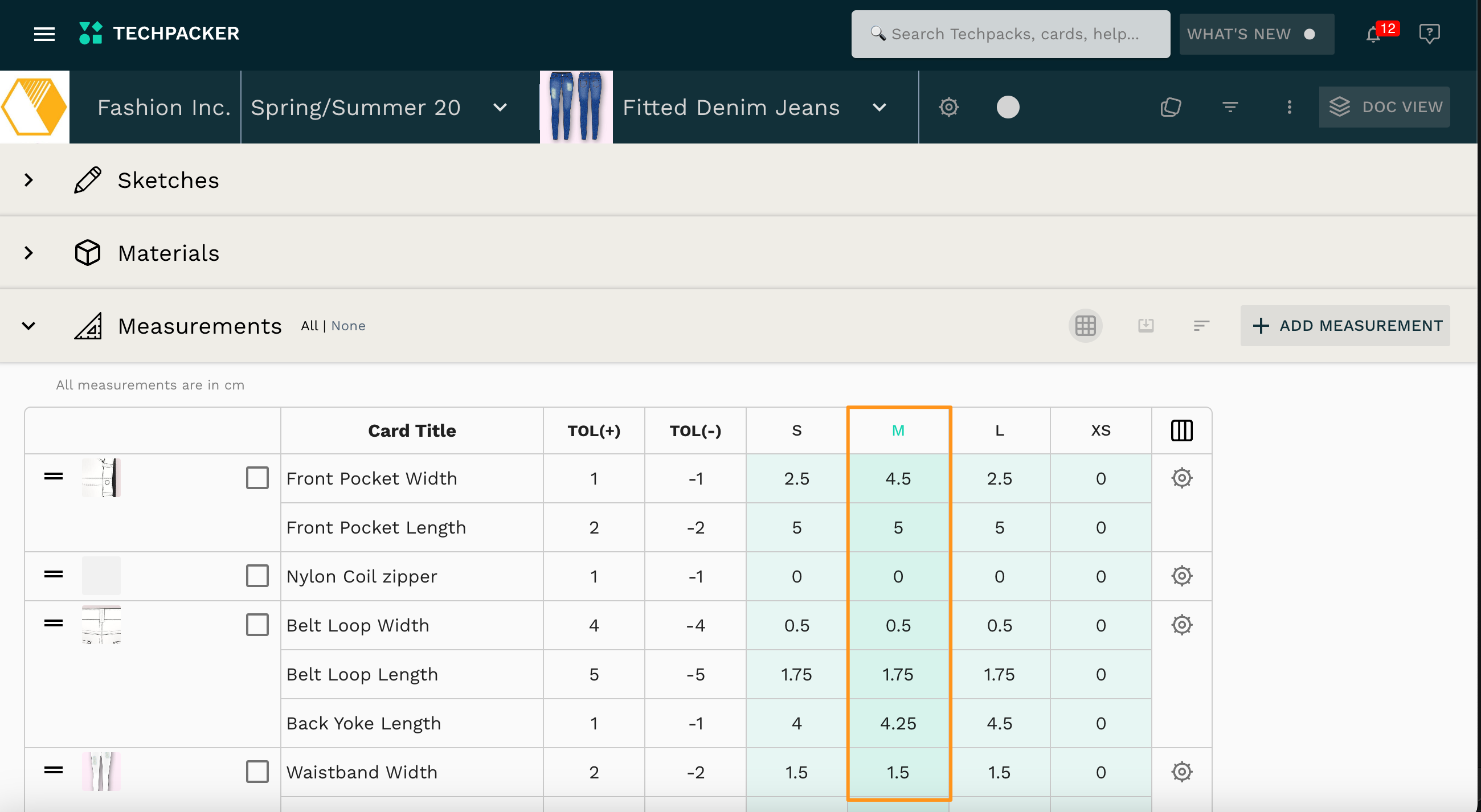

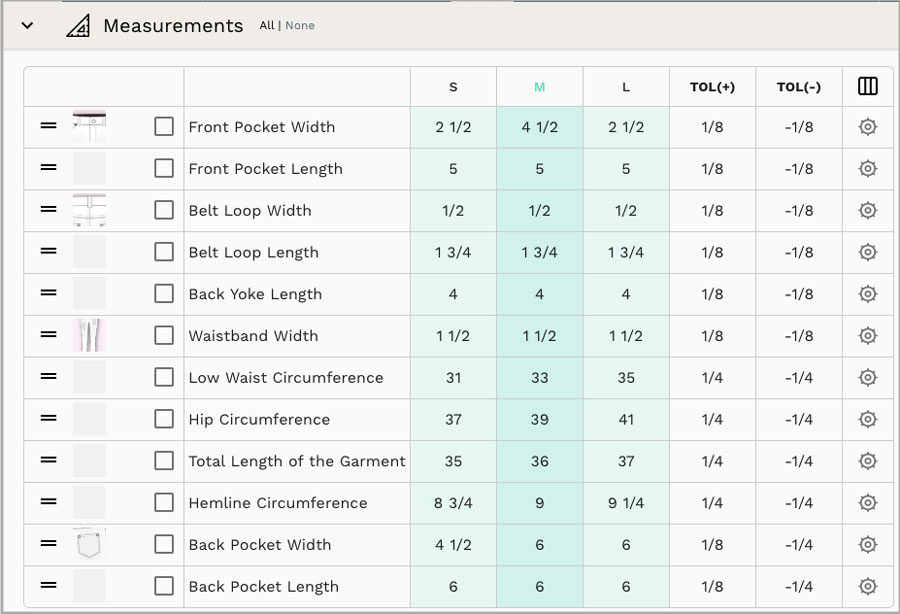

Once clicked, your sample size will be selected and will be highlighted as shown below.




4. How to add, hide, delete, and rearrange columns in the measurement table


Step 1

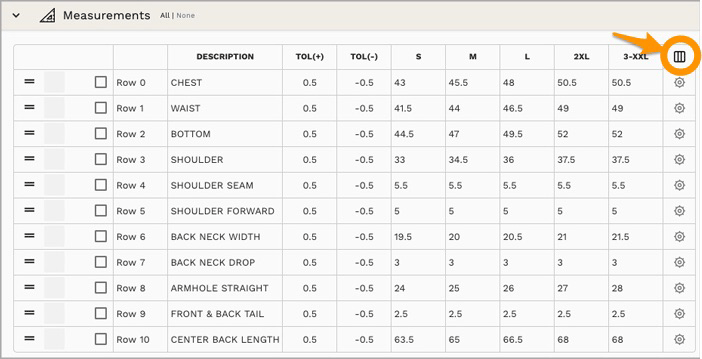

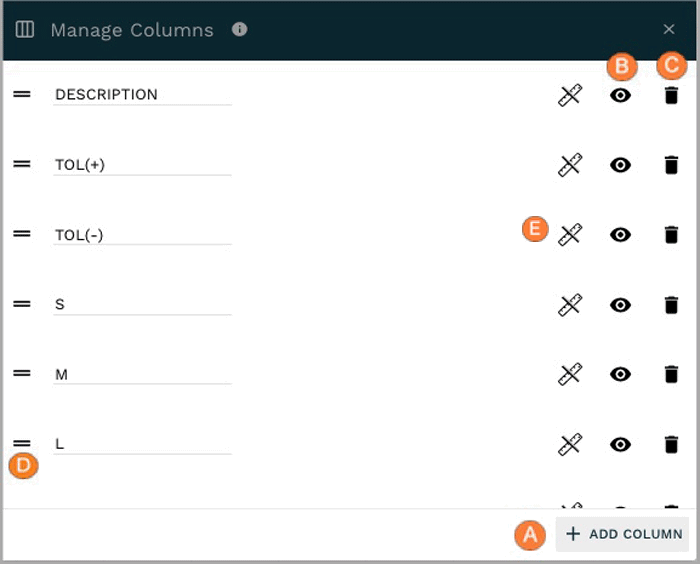

To make any changes in the column, click on the Vector1.png icon located at the right top corner of the table.




Step 2


To add a new column, click on the +ADD COLUMN at the bottom of the window.

To hide a column, click on the images.png icon and this will hide that column from the table.

Alphabet-c.png To delete a column in a card click on the images__1_.pngicon.

Alphabet-d.png To rearrange a column, click on the download.png icon then drag and drop to rearrange that column.

E.png To change the column into size column, click on measure.png icon.






5. What is the size and non-size column


To be able to utilize the grading function correctly in the measurements table you must first define your sizenon-size columns, and sample-size. You can change the sample size by either clicking on the column header or by going to your techpack settings

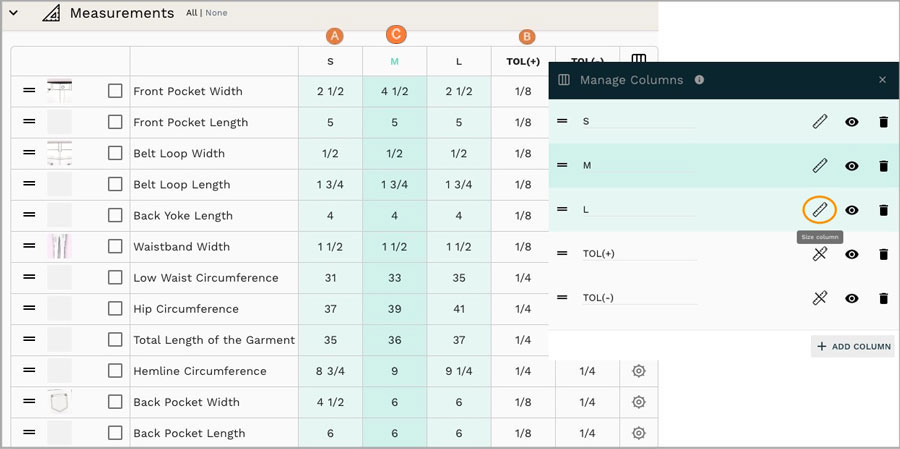

The mceclip4.png size columns are highlighted in green color, the colorless columns indicate the mceclip5.png non-size columns and the darker green columns indicate mceclip6.pngsample size.




You can switch any column from size to non-size (and vice versa) using the measure.png icon located inside your column manager.


The sample size will automatically be picked from the techpack settings.




6. How to add sub-measurements in the measurement section


Sometimes it is required to have sub-measurements under a major point of measurements. They can be created on Techpacker by following these steps.


Step 1

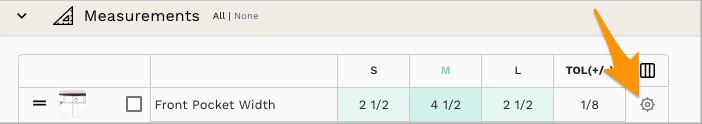

Click on the Vector.png icon located on the right end of each card.



Step 2

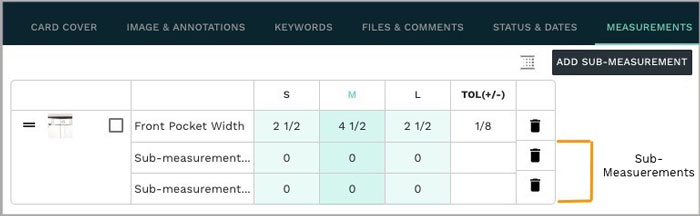

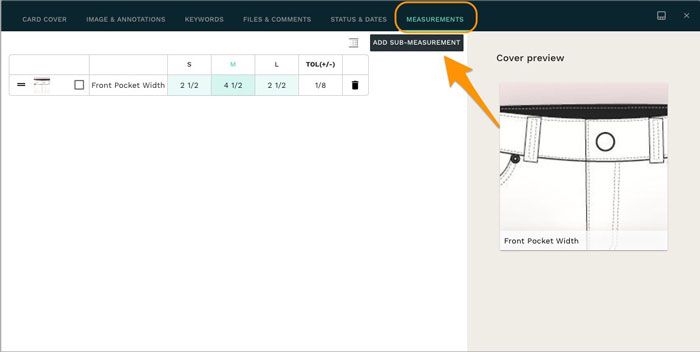

Go to the measurements tab and click on add sub-measurement.




New sub-rows will be added and you can enter the point of measurements in those sub-measurements.






7. How to print measurement section in the PDF?

To print your measurement section/s in your techpack PDF, navigate to the doc view page. From the document settings make sure the measurement section is selected. If not, checkGroup.png the  measurement section and wait for a couple of seconds for your new rendered PDF with the measurement section.
